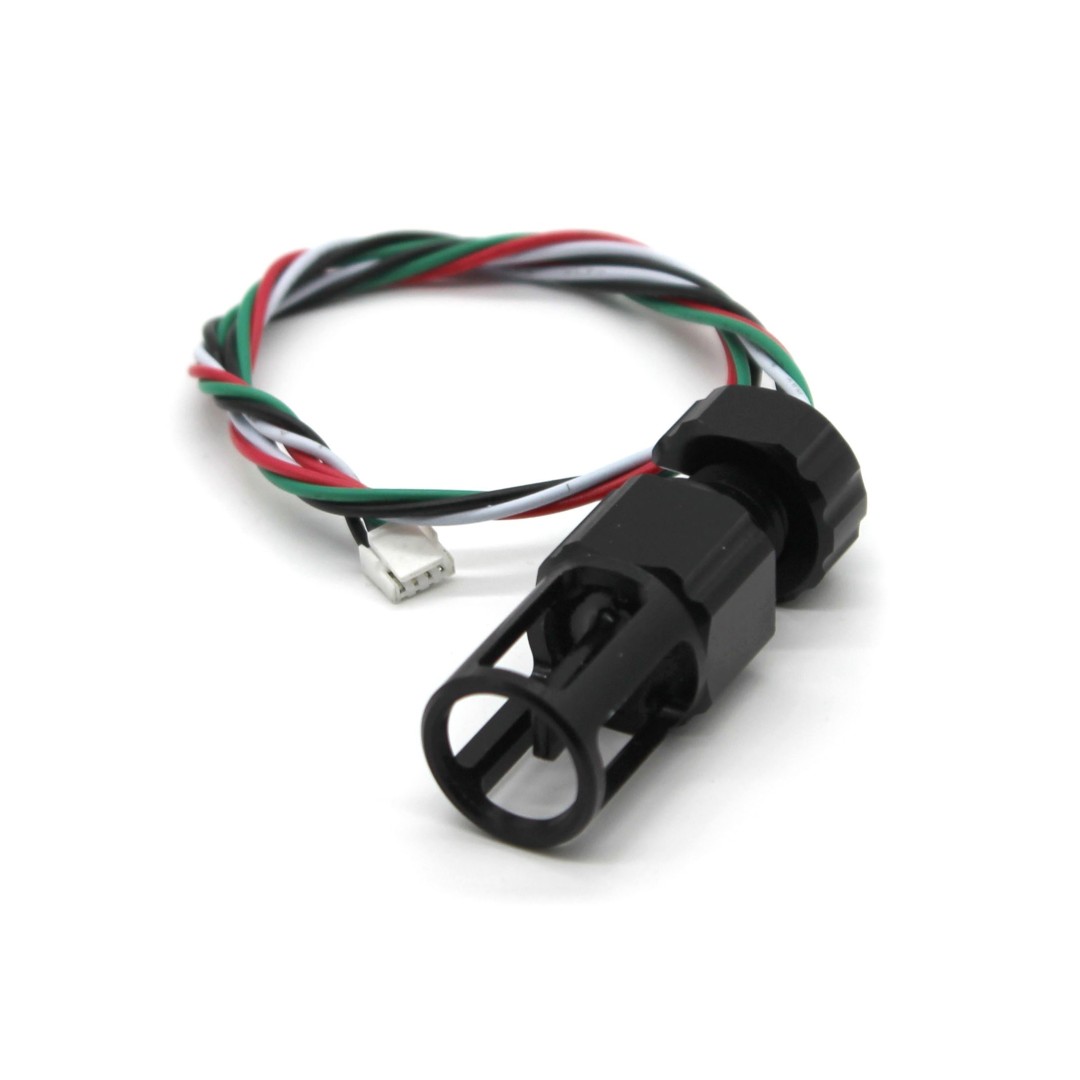

Celsius Fast-Response, ±0.1°C Temperature Sensor (I2C)
1/0
Water / air temperature measurement
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Celsius Fast-Response, ±0.1°C Temperature Sensor (I2C)
Instrument Type (L05)
134
Version
-
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$1 - $100
Sensor Lifetime Months
Indefinite
Power Supply Type
3.3 to 5.5 volts DC
Battery Lifetime Days
-
Accuracy Performance
± 0.1°C (between -5 to 50°C)
DIMENSIONS
Length
5.1 cm
Width
1.6 cm
Depth
1.6 cm
Weight
-
Measurement Range
-40 to +125°C
Service Providers
Service providers can be developers, manufacturers, or resellers.Manufacturer
Name
Blue Robotics
Webpage
http://www.bluerobotics.com
Description
-
Contact
Tony White
MISC
Data Transmission Range
I2C
Data Transmission Frequency
real time
Data Format
-
Keywords
Temperature
Documentation
-
Documents
-
Last Update
2025-05-19 15:21:52
