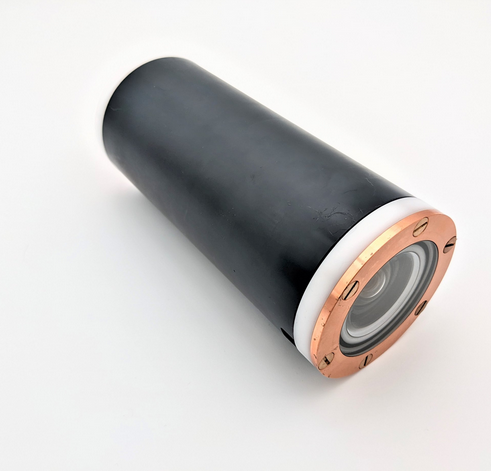

C1 - Machine Vision Camera
Intended for long term underwater optical monitoring for cabled platforms or underwater vehicles
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
C1 - Machine Vision Camera
Instrument Type (L05)
311
Version
5.1 Megapixel Color Camera
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
>60
Power Supply Type
12 VDC
Battery Lifetime Days
-
Accuracy Performance
5.1 Megapixel, with options for up to 43 Megapixel
DIMENSIONS
Length
21 cm
Width
8.9 cm
Depth
8.9 cm
Weight
0.002 kg
Measurement Range
Field of View: 65.4 x 56.2 degrees, range is dependant on water clarity
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
Ethernet, with software for data acquitition, processing, and transfer to cloud database
Data Transmission Frequency
Real time
Data Format
*.jpeg or similar image format
Keywords
Optical imagery
Documentation
-
Documents
-
Last Update
2025-05-19 15:25:35
