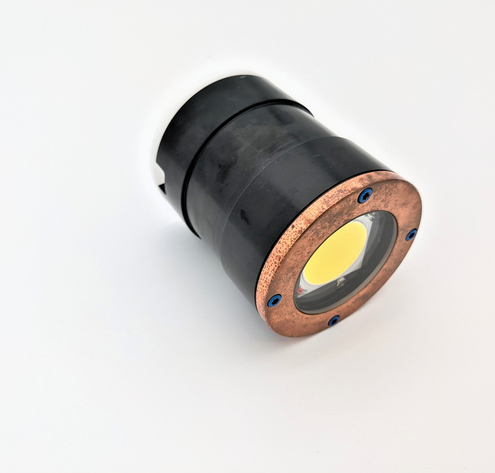

L1 - LED Light
Intended for long term underwater optical monitoring for cabled platforms or underwater vehicles
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
L1 - LED Light
Instrument Type (L05)
311
Version
15,000 Lumen high power LED light with strobe and PWM dimming
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
>60
Power Supply Type
48 VDC
Battery Lifetime Days
-
Accuracy Performance
up to 15000 lumen output
DIMENSIONS
Length
9.5 cm
Width
3 cm
Depth
3 cm
Weight
0.95 kg
Measurement Range
wide ~150 degree illuminiation
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
TTL and PWM input
Data Transmission Frequency
NA
Data Format
NA
Keywords
Documents
-
Last Update
2025-05-19 14:47:02
