AQ / OC range
1/0
Monitoring of pH and salinity changes for environmetal applications (outfalls, local changes in pH, ocean changes)
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
AQ / OC range
Instrument Type (L05)
350
Version

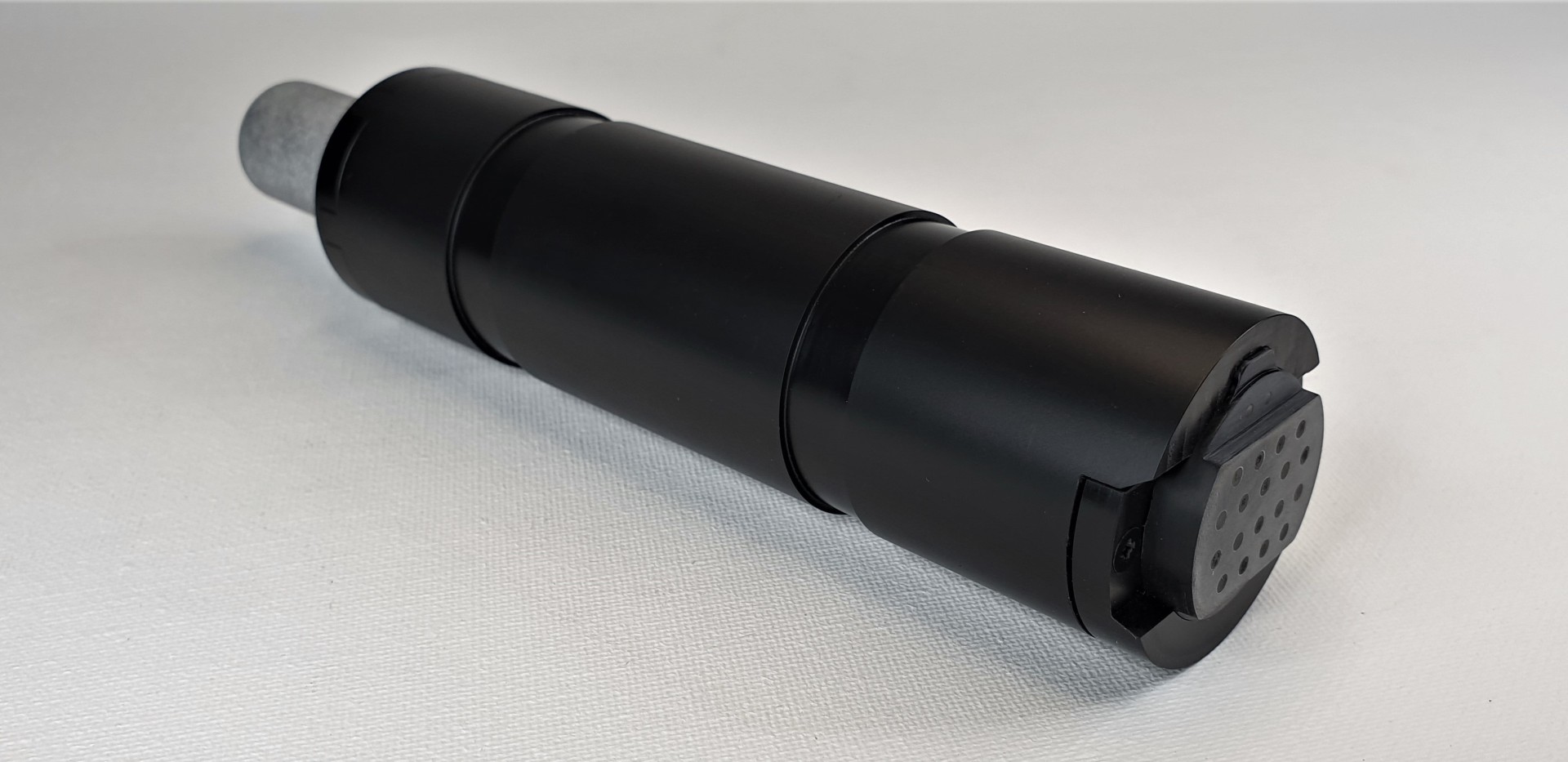

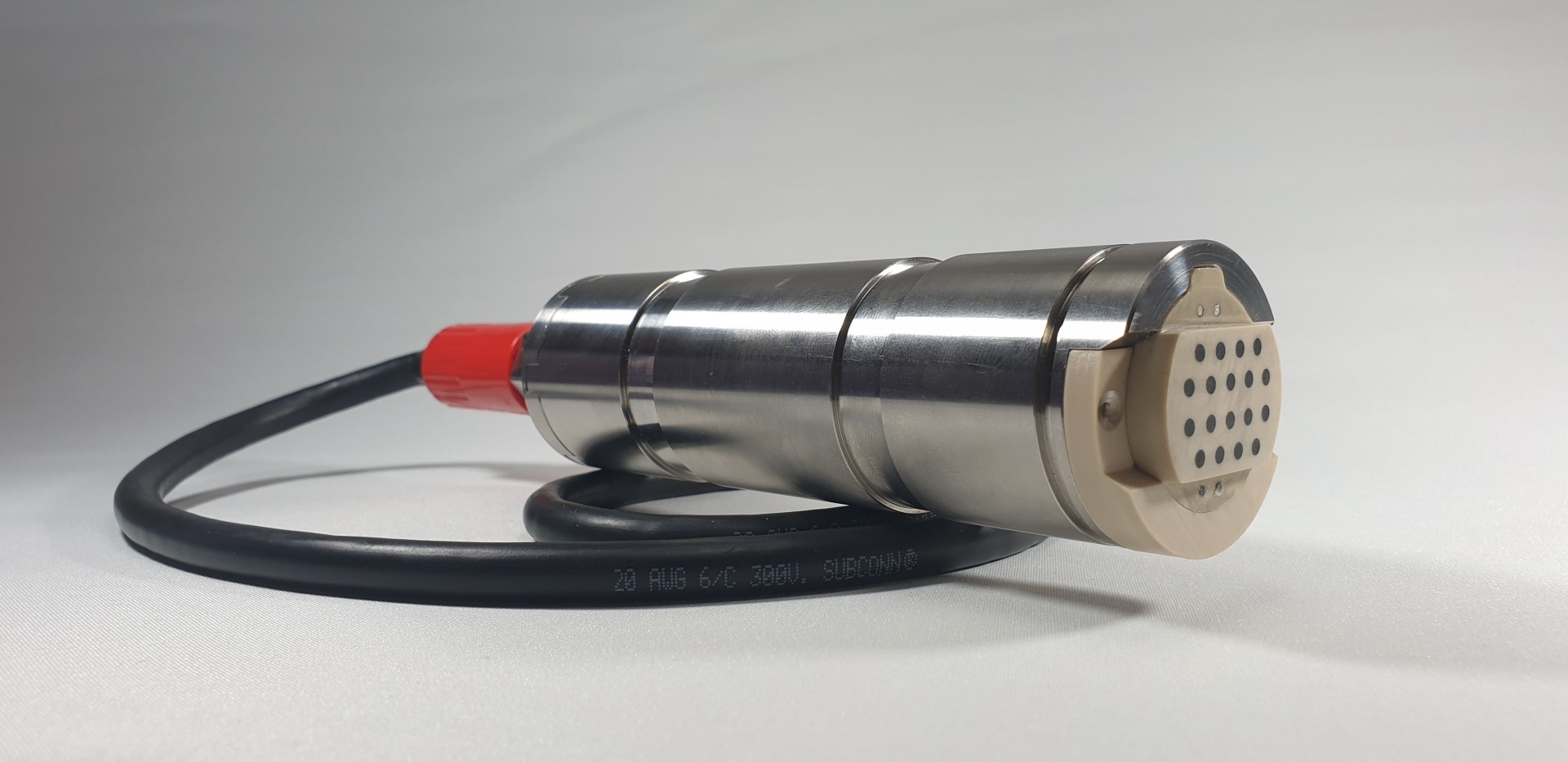

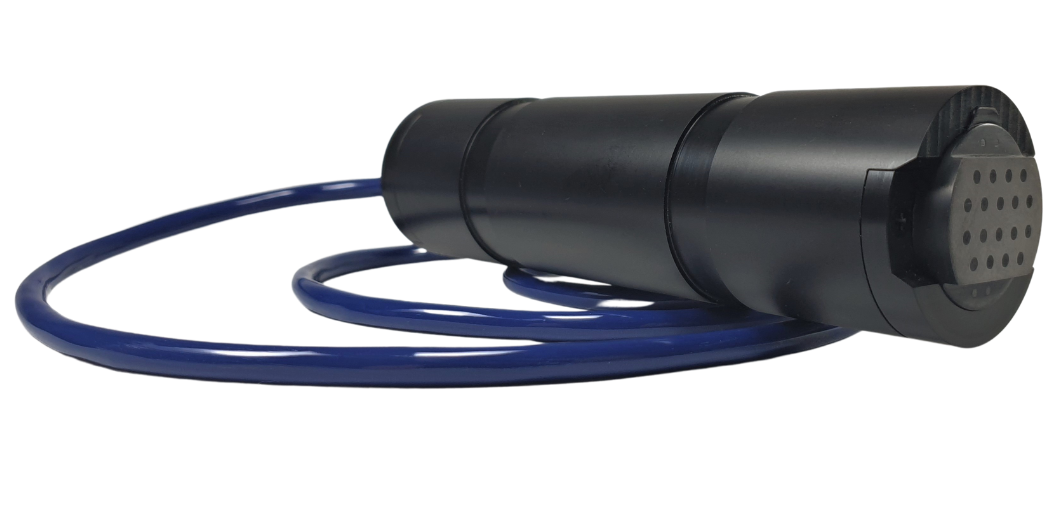

OC1250 (1250m rated), OC300 (300m rated), AQ50 (50m rated), AQ5 (5m rated)
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$501 - $2,000
Sensor Lifetime Months
8 months hourly monitoring, 2 months 15min monitoring
Power Supply Type
Hard wired or battey (6-42V)
Battery Lifetime Days
28A/hr battery x2, 70 days 15min monitoring, 240 days 1hr monitoring
Accuracy Performance
0.05 pH units, 0.1C, 20% of signal for salinity conductivity
DIMENSIONS
Length
19 cm
Width
4.1 cm
Depth
4.1 cm
Weight
0.08 kg
Measurement Range
2-10 pH units entire salinity range, -5-40C, 0.05-7ppt (0.1-14mS/cm)
Service Providers
Service providers can be developers, manufacturers, or resellers.Manufacturer
Name
ANB Sensors Ltd
Webpage
http://anbsensors.com
Description
-
Contact
Kay McGuinness
MISC
Data Transmission Range
Digital - serial (232/485) or to computer through DTU or analog out
Data Transmission Frequency
Real time if connected to device. Onboard stored data via sd card
Data Format
.csv file
Keywords
pH
temperature
salinity
conductivity
Documentation
-
Documents
-
Last Update
2025-05-19 15:20:02
