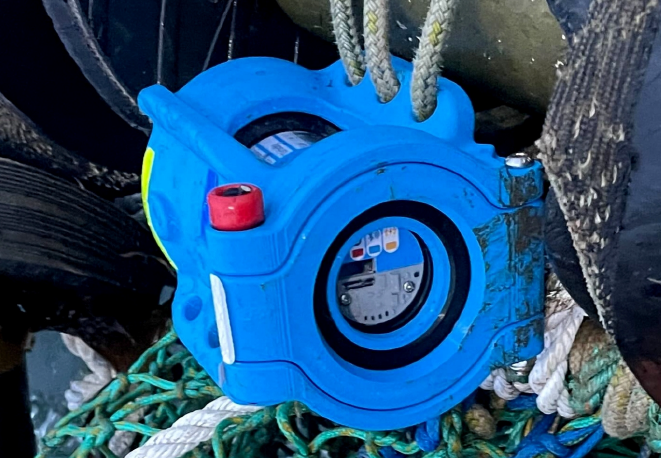

SeaSensor | Advanced Underwater Sensor






SeaSensor is a robust underwater sensor designed for accurate environmental monitoring in the harshest marine conditions.


Built for fishing operations and marine research,  it collects key ocean data – including temperature, depth, turbidity, light intensity, immersion, and motion – in one compact unit.






Get the right sensor for your project: https://catchcam.tech/products/seasensor/


Multi-Parameter Sensor for Ocean Data Collection




  • Build to Last: Engineered to handle deep deployments, high pressure and rough handling, SeaSensor is ideal for repeated use in harsh underwater environments.




  • Long-Term Monitoring: The extended battery life and customisable sample rates allow for weeks of autonomous monitoring without retrieval.




  • Automated Data Collection​: SeaSensor provides accurate readings on temperature, depth, turbidity, light intensity, immersion and motion; to support evidence-based decision making.




  • Compact and Agile:​ Available in 300 and 800m depth-rated versions, SeaSensor mounts quickly into gear and fits almost any setup. It can accommodate extra sensors via its free port connection.




  • Quick and Easy Data Transfer: Download data via Bluetooth for quick insights or export as .CSV for later processing. Optional Cloud Hub and upcoming acoustic streaming available.




To see the full technical specifications, download the product DataSheet below.






GENERAL SENSOR INFORMATION

Device PID (L22) -
SCOOP PID SCOOP67
Sensor name SeaSensor
Instrument Type (L05) 130
Version standard 800m depth rating
Parameters
Technology Readiness Level (TRL) 9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type Purchase of complete unit
Price category $2,001 - $10,000
Sensor Lifetime Months 60+
Power Supply Type Battery - wirelessly charged
Battery Lifetime Days Up to 30 days depending on recording mode
Accuracy Performance Sensor / Range / Accuracy /Resolution: Depth 0 – 300m / ± 0.45m / 0.1 m | Temperature -5 – 40 °C / ± 0.1 °C / 0.01 °C | Turbidity 0 – 500 FTU / ± 0.5 FTU / 0.05 FTU | Lux 0 – 3750 / Lx ± 0.5 / Lx 0.06 Lx | Motion 9-axis imu Gyro  ±125, ±250, ±500, ±1000, ±2000 °/sec | Acceleration ±2g, ±4g, ±8g and ±16g | Magnetometer ±2500?T, 0.6 or 15?T resolution

DIMENSIONS

Length 16.5 cm
Width 7.5 cm
Depth 7.5 cm
Weight 0.44 kg
Measurement Range -

Service Providers

Service providers can be developers, manufacturers, or resellers.

Manufacturer

Name CatchCam Technologies Ltd
Webpage http://www.catchcam.tech
Description -
Contact Tom Rossiter

MISC

Data Transmission Range BLE
Data Transmission Frequency Delayed
Data Format CSV
Keywords Multi-parameter sensor temperature sensor salinity sensor ctd dissolved oxygen
Documentation https://catchcam.tech/products/seasensor/
Documents
Last Update 2025-11-12 18:46:37
