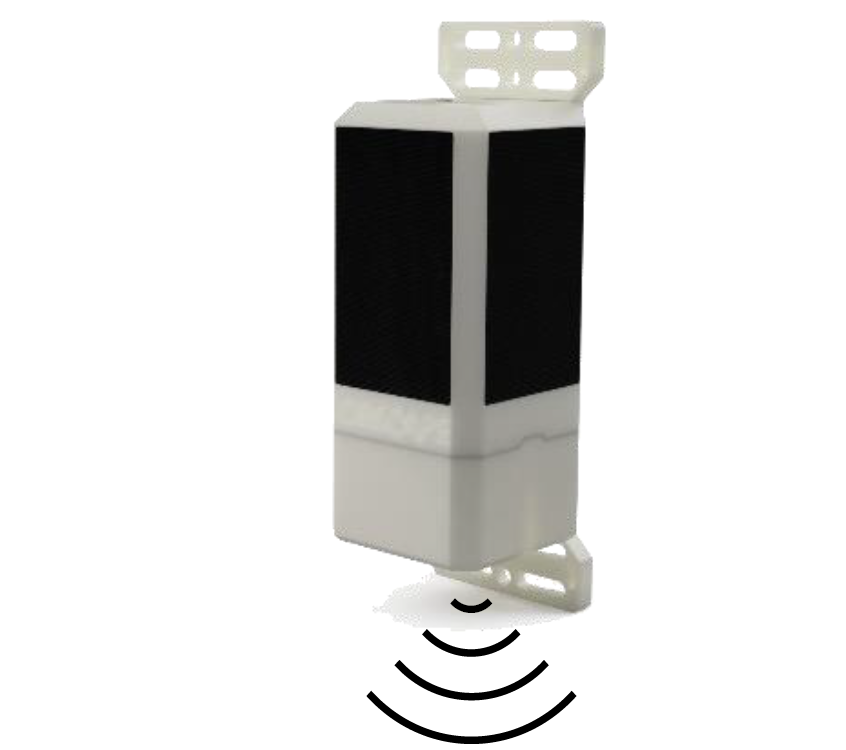

Radar Level Gauge
The Level Gauge is suitable for application in natural as well as man-made water systems. Whether you are interested in tidal water level variations, Floodingf, stormwater runoff or storage basin volumes.
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
Radar Level Gauge
Instrument Type (L05)
-
Version
Solar powered water level measurement Module
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS)Test accreditation valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01.
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
2.5 kg
Measurement Range
Water level and additional (status) parameters
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
-
Keywords
Water level
battery voltage
GSM signal strength
internal temperature
Documentation
-
Last Update
2025-08-05 10:42:40
