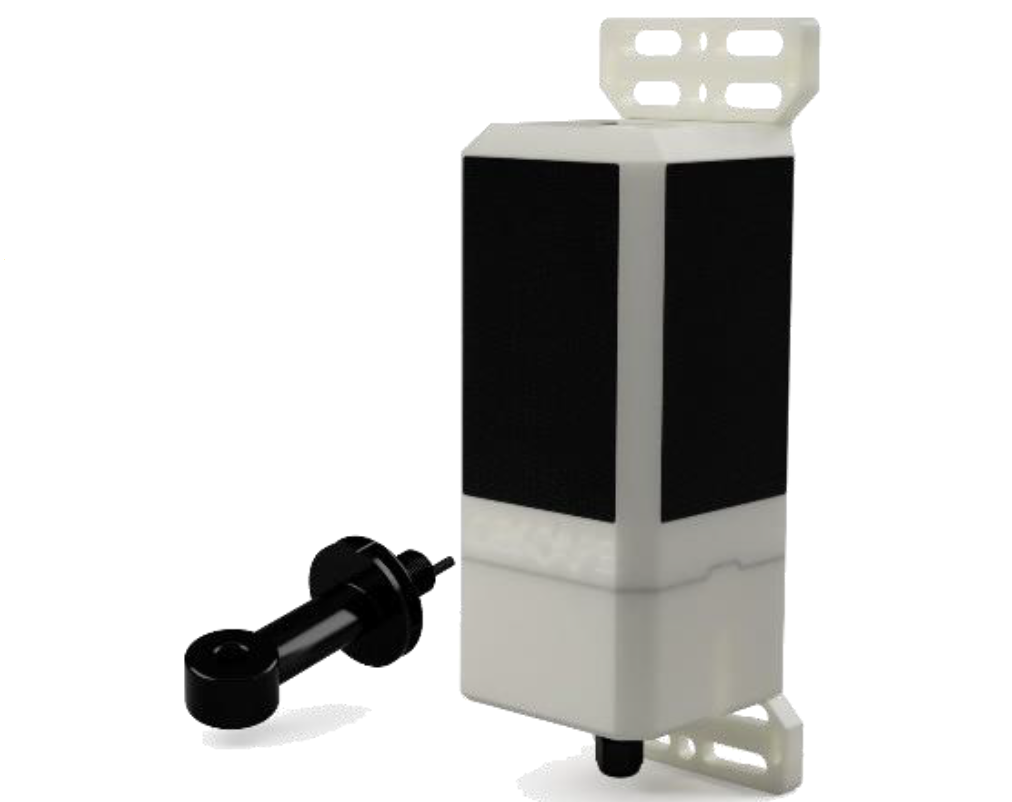

CT Station
-Urban wastewater treatment -Industrial effluent treatment -Surface water monitoring -Sea water -Fish farming
GENERAL SENSOR INFORMATION
Device PID (L22)
-
Sensor name
CT Station
Instrument Type (L05)
350
Version
Solar powered conductivity measurement Module
Parameters
Technology Readiness Level (TRL)
9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type
Purchase of complete unit
Price category
$2,001 - $10,000
Sensor Lifetime Months
+60 months
Power Supply Type
Solar and 1 x Rechargable 18650Li-On Battery
Battery Lifetime Days
365 - 730 days
Accuracy Performance
Measure principle: Inductive conductivity sensor regulated in temperatureMeasure rangesconductivity: 0,0 –100,0 mS/cmResolution: 0,1Measure ranges salinity: 5-60 g/KgWorking temperature: 0 to 50 °CTemperature compensation: With NTC or external measureAccuracy T°C: ± 0.5 °CResponse time: 90% of the value in less than 30 secondsStocking temperature: -10°C à + 60°CMaximumrefreshing time: Maximum < 1 seconde
DIMENSIONS
Length
9 cm
Width
9 cm
Depth
30 cm
Weight
3.5 kg
Measurement Range
Sensor regulated in temperature. Ranges 0 to 100 mS/cm. Resolution: 0,1
Service Providers
Service providers can be developers, manufacturers, or resellers.MISC
Data Transmission Range
GSM (4G with 2G fallback, upgradable Satellite (Iridium)
Data Transmission Frequency
Near real time
Data Format
-
Keywords
Conductivity
water temperature
salinity
atmospheric pressure
battery voltage
GSM signal strength
internal temperature
sensor inclination
internal humidity
Documentation
-
Documents
Last Update
2025-08-05 10:45:39
