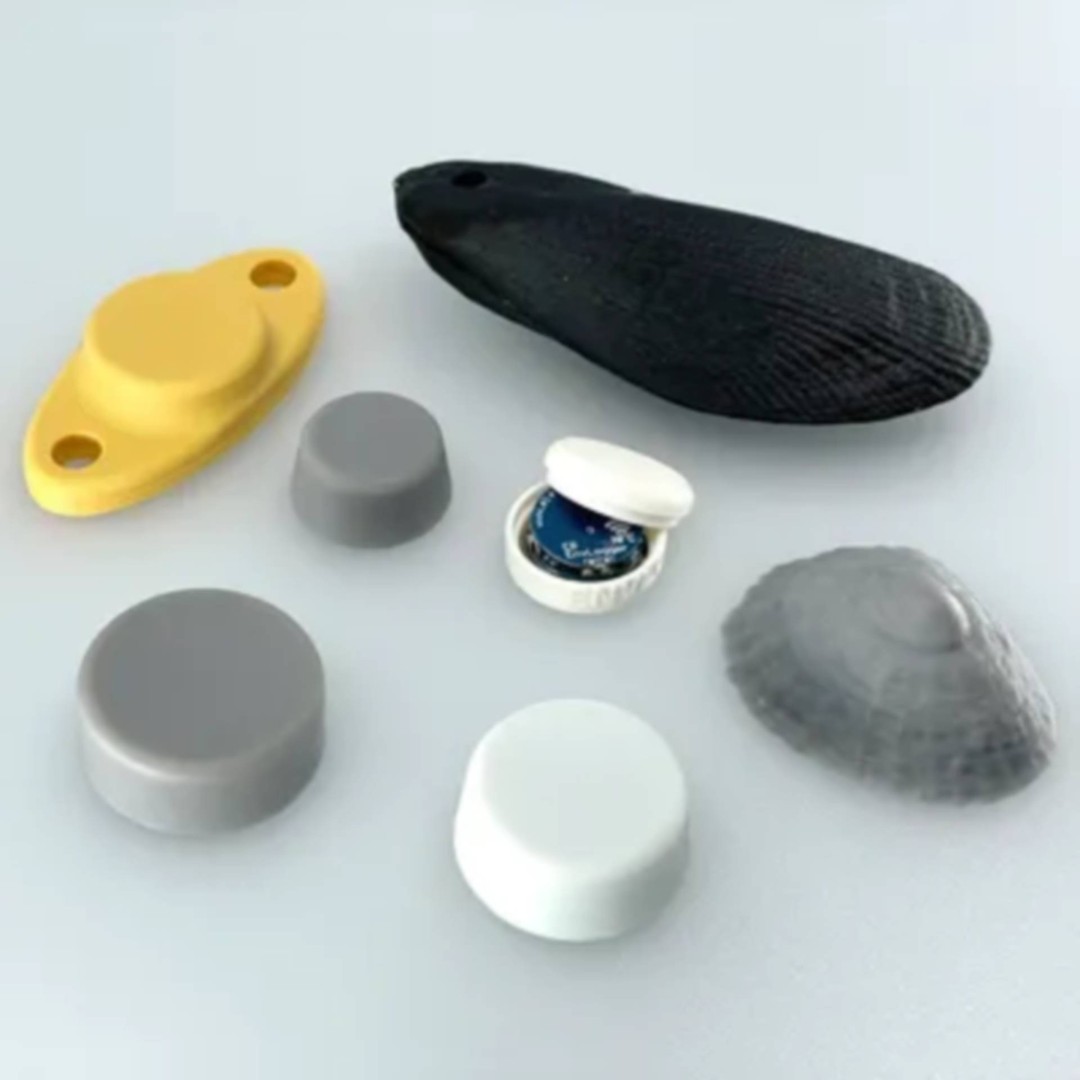

EnvLogger

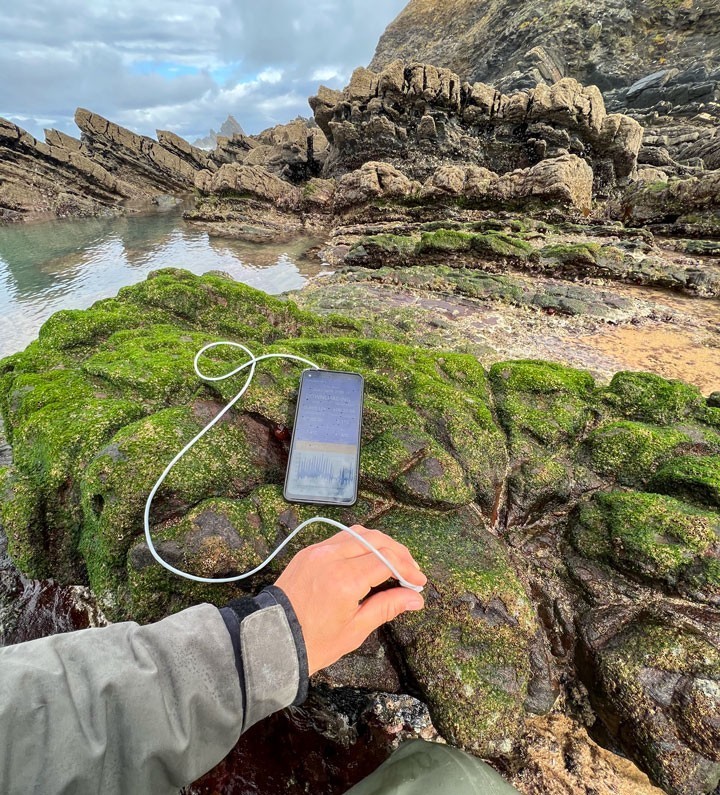

Autonomous temperature logging in any environment between -30ºC and 60ºC. These loggers are extremely robust, having been deployed to depths of 4000 meters. They can withstand UV light, slightly corrosive environments such as seawater, wave impacts, and ice scouring. The loggers can collect data autonomously in remote locations for years. In the marine realm, they have already been deployed in under-sampled environments such as intertidal zones, coastal areas, recreational boat hulls, coral reefs, floating or anchored platforms, and deep-sea locations up to approximately 4000 meters depth. They have even been used in citizen science contexts, attached to divers' gear or worn as bracelets by beachgoers.

GENERAL SENSOR INFORMATION

Device PID (L22) TOOL2223 NVS
SCOOP PID SCOOP5
Sensor name EnvLogger
Instrument Type (L05) 134
Version Model T7.3
Technology Readiness Level (TRL) 9 - Actual system proven in operational environment (Successful mission deployment)
Assembly Type Purchase of complete unit
Price category $1 - $100
Sensor Lifetime Months 120 months (10 years)
Power Supply Type Non-replaceable 3.3V coin type Li-ion battery (necessary for maximum water resistance)
Battery Lifetime Days 3652 days (10 years)
Accuracy Performance ±0.1 ºC precision and ±0.2 ºC accuracy

DIMENSIONS

Length 1.15 cm
Width 2.9 cm
Depth 2.9 cm
Weight 0.012 kg
Measurement Range - 30 ºC to + 60 °C

Service Providers

Service providers can be developers, manufacturers, or resellers.

Manufacturer

Name ElectricBlue
Description -
Contact Fernando P. Lima
Contact Email

MISC

Data Transmission Range NFC - Near Field Communication
Data Transmission Frequency Delayed
Data Format Plain text (csv)
Keywords Temperature logging sensor
Documents -
Last Update 2025-11-12 10:02:47
